Light Duty Attachment Points
316 Marine Grade Stainless Steel
Fasten to Timber or Steel

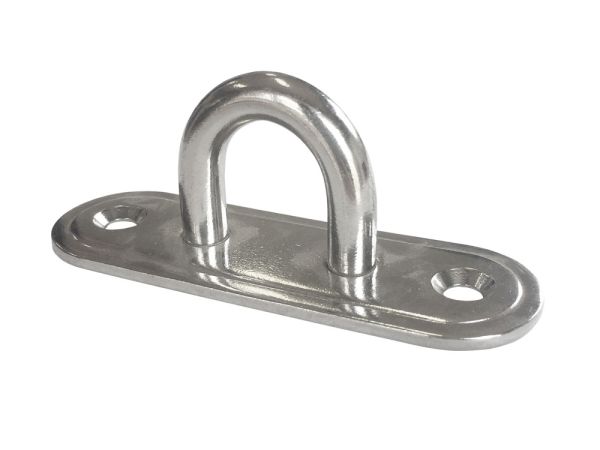

Stainless Steel Oblong plates create a stylish attachment point for a wide range of applications including smaller sized shade sails. They can easily be affixed to steel columns or timber beams.

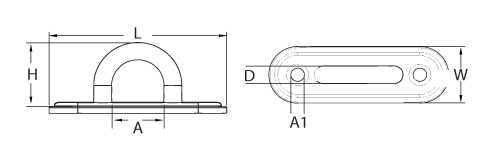

SIZES
  | |||||
Size |
D |
L |
H |
A1 |
BL* |
9mm |
9 |
100 |
24 |
8 |
1700kg |
*BL= Breaking Load. It is the Purchasers’ responsibility to determine whether the testing procedure and breaking load is suitable for purpose. |
FINAL COMMENTS
Oblong Plates are a stocked item available in a 9mm rod size. Other sizes are available. For additional information or to discuss your project please call us during normal business hours on Free-call 1800 155 233.
